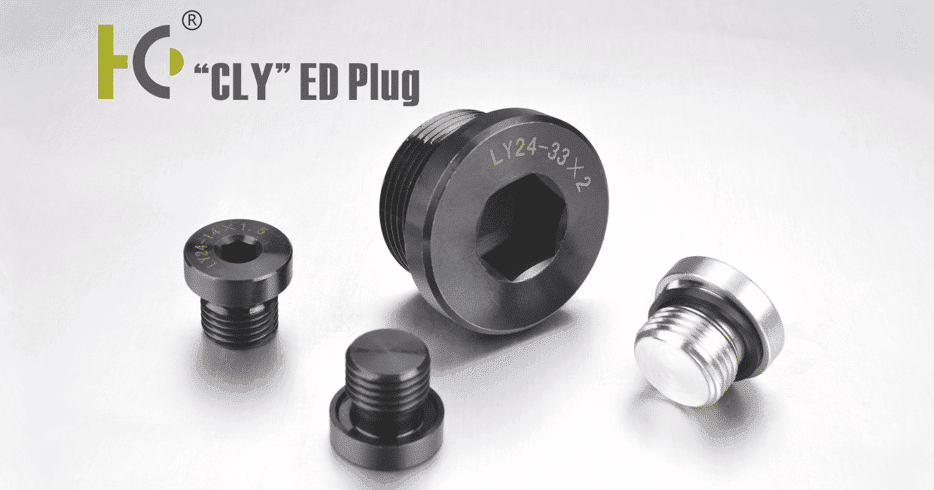

Tappi filettati a tenuta
320BAR/4300PSI
Guarnizione ED pad
Acciaio temprato
Trattamento di ossidazione superficiale
GAS
| COD. |
E Filetto |
ED Tenuta |
A | L | S | D | Nm |
| HCEG02 | G1/8″X28 | ED-10 | 8 | 12 | 5 | 14 | 11-13 |
| HCEG04 | G1/4″X19 | ED-14 | 12 | 17 | 6 | 19 | 25-30 |
| HCEG06 | G3/8″X19 | ED-17 | 12 | 17 | 8 | 22 | 42-58 |
| HCEG08 | G1/2″X14 | ED-21 | 14 | 19 | 10 | 27 | 72-82 |
| HCEG12 | G3/4″X14 | ED-27 | 16 | 21 | 12 | 32 | 120-140 |
| HCEG16 | G1″X11 | ED-33 | 16 | 22 | 17 | 40 | 150-180 |
| HCEG20 | G1.1/4″X11 | ED-42 | 16 | 22 | 22 | 50 | 190-280 |
| HCEG24 | G1.1/2″X11 | ED-48 | 16 | 22 | 24 | 55 | 260-350 |
| HCEG32 | G2″X11 | ED-60 | 18 | 26 | 27 | 70 | 340-400 |
| HCEG40 | G2-1/2″X11 | ED-B40 | 27 | 340-400 |
METRICI
| COD. |
E Filetto |
ED Tenuta |
A | L | S | D | Nm |
| HCEM08 | M8XI | ED-8 | 8 | 12 | 4 | 12 | 8-10 |
| HCEM10 | M10X1 | ED-10 | 8 | 12 | 5 | 14 | 10-12 |
| HCEM12 | M12X1.5 | ED-12 | 12 | 17 | 6 | 17 | 15-25 |
| HCEM14 | M14X1.5 | ED-14 | 12 | 17 | 6 | 19 | 20-35 |
| HCEM16 | M16X1.5 | ED-16 | 12 | 17 | 8 | 22 | 25-40 |
| HCEM18 | M18X1.5 | ED-18 | 12 | 17 | 8 | 24 | 30-45 |
| HCEM20 | M20X1.5 | ED-20 | 14 | 19 | 10 | 26 | 35-50 |
| HCEM22 | M22X1.5 | ED-22 | 14 | 19 | 10 | 27 | 40-70 |
| HCEM24 | M24X1.5 | ED-24 | 14 | 19 | 10 | 29 | 40-70 |
| HCEM26 | M26X15 | ED-26 | 16 | 21 | 12 | 32 | 60-100 |
| HCEM27 | M27X2 | ED-27 | 16 | 21 | 12 | 32 | 100-135 |
| HCEM33 | M33X2 | ED-33 | 16 | 22 | 17 | 40 | 150-240 |
| HCEM42 | M42X2 | ED-42 | 16 | 22 | 22 | 50 | 260-360 |
| HCEM48 | M48X2 | ED-48 | 16 | 22 | 24 | 55 | 300-400 |
| HCEM60 | M60X2 | ED-60 | 18 | 26 | 27 | 70 | 380-450 |
| Pressione Nominale di Tenuta | |||||
|
Diametri mm |
A356 | 2024-T4 | EN-GJS-500 | GJS-600 | ETG-100 |
| G1/8″ – G3/4″ | 280BAR | 320BAR | |||
| G1/2″ – G2-1/2″ | 220BAR | 280BAR | |||
| M8x1-M27x2 | 280BAR | 320BAR | |||
| M33-M60 | 220BAR | 280BAR | |||
| Preparazione del foro: in caso di dubbi contattare il Ns. ufficio tecnico | |||||
