Sbavatori elastici misure BB-1.5 / BB-6 Singolo Tagliente

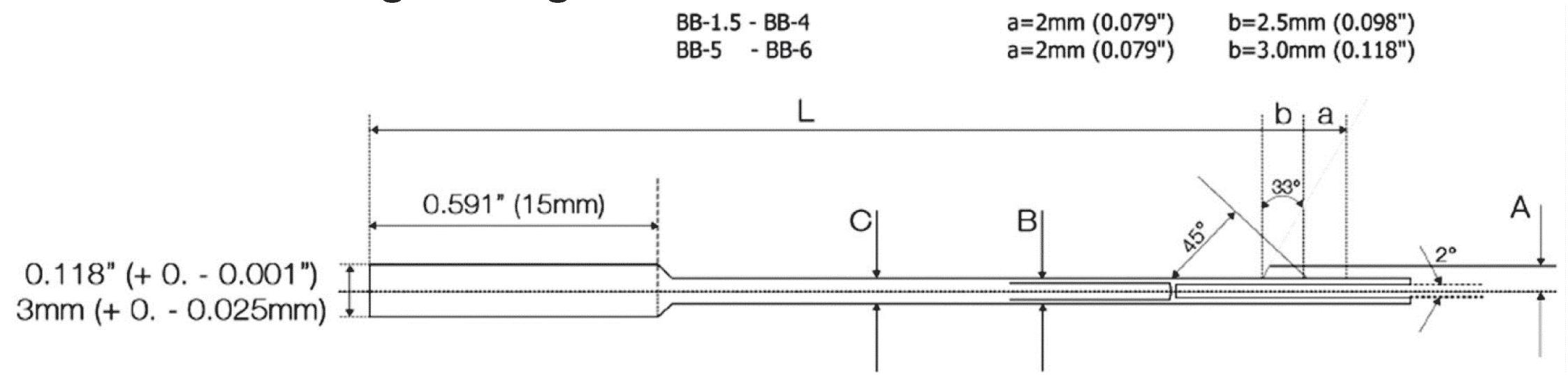

BB-1.5 – BB-4   a=2mm(0.079”)  b=2.5mm(0.098”)
BB-1.5 – BB-4   a=2mm(0.079”)  b=3mm(0.118”)

Flex-Hone Levigatore flessibile
Utensile Campo di Lavoro

C – Diametro albero

Tolleranza +0/-0.1

L

Lunghezza Totale

 A B
Pollici mm Pollici mm Pollici mm Pollici mm Pollici mm
BB-1.5 .0591-.0630 1.5-1.6 .055 1.4 1.97 50 .055 1.4 .019 0.5
BB-1.6 .0630-.0670 1.6-1.7 .059 1.5 .059 1.5
BB-1.7 .0670-.0709 1.7-1.8 .063 1.6 .063 1.6
BB-1.8 .0709-.0748 1.8-1.9 .067 1.7 2.36 60 .067 1.7
BB-1.9 .0748-.0788 1.9-2.0 .071 1.8 .071 1.8
BB-2 .0788-.0866 2.0-2.2 .075 1.9 .075 1.9
BB-4 .0866-.0945 2.2-2.4 .083 2.1 3.15 80 .083 2.1 .039 1.0
BB-5 .0945-.1023 2.4-2.6 .091 2.3 .091 2.3
BB-6 .1023-.1103 2.6-2.8 .098 2.5 .098 2.5
