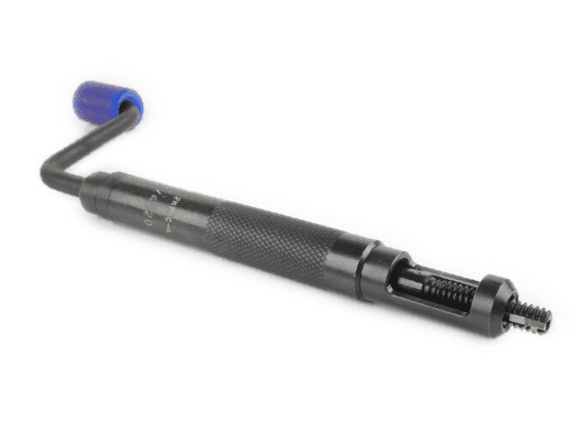

Attrezzo di posa manuale con preavvolgitore filetti riportati
E’ da sempre il sistema più sicuro ed affidabile per la posa dei filetti riportati soprattutto nelle misure più piccole (M2.5-M3), hanno un nasello preavvolgitore che riduce il diametro del filetto e lo allinea perfettamente. Il medesimo attrezzo può installare sia inserti di tipo Free Running che di tipo Locking. Consigliato per bassi volumi di posa.

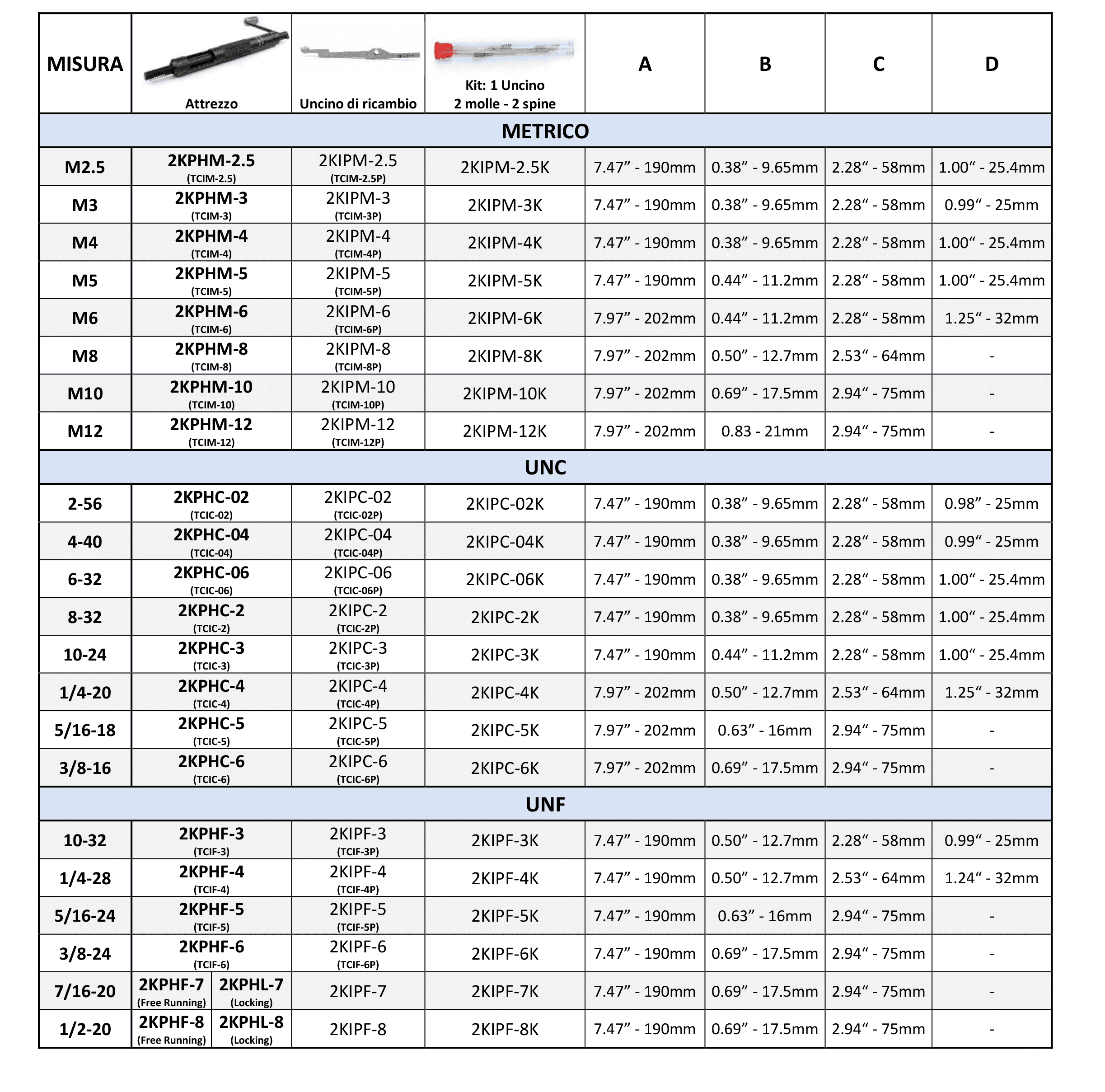

| MISURA | Attrezzo | Uncino di ricambio |
Kit: 1 Uncino 2 molle – 2 spine |

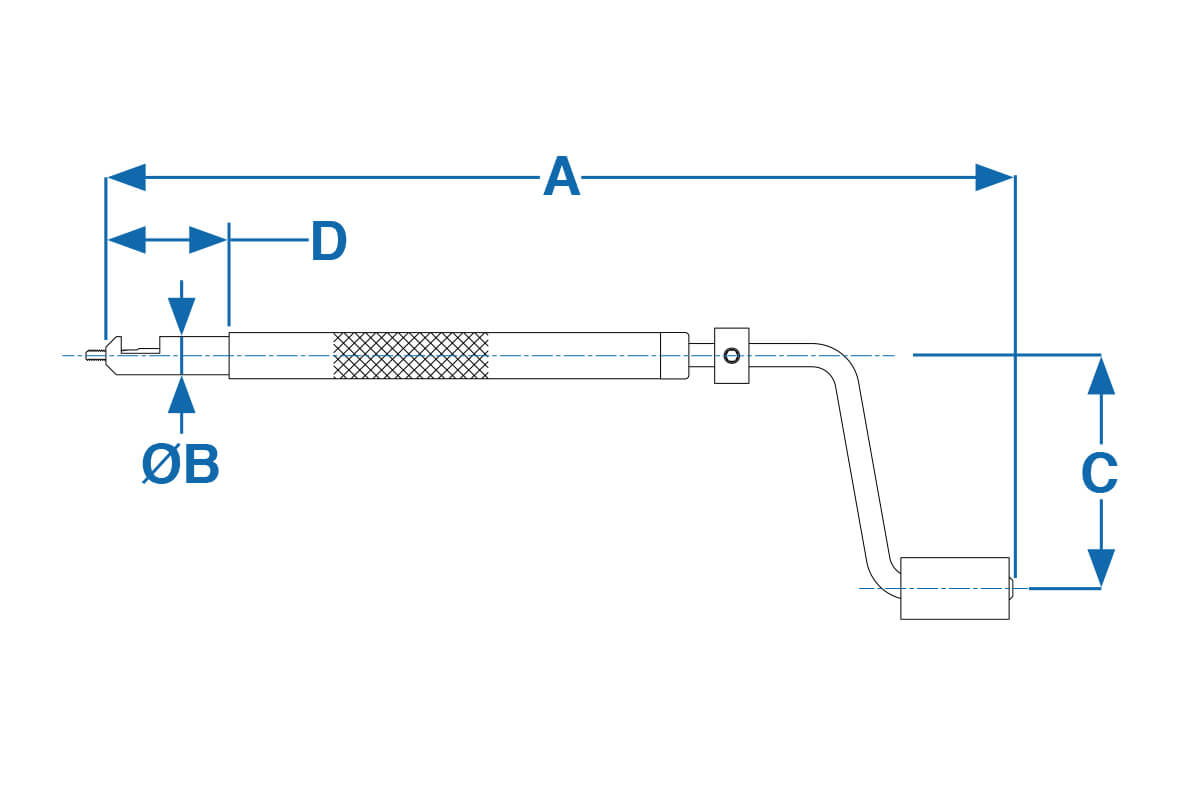

A | B | C | D | |
| METRICO | ||||||||
| M2.5 | 2KPHM-2.5
(TCIM-2.5) |
2KIPM-2.5
(TCIM-2.5P) |
2KIPM-2.5K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 1.00“ – 25.4mm | |
| M3 | 2KPHM-3
(TCIM-3) |
2KIPM-3
(TCIM-3P) |
2KIPM-3K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 0.99“ – 25mm | |
| M4 | 2KPHM-4
(TCIM-4) |
2KIPM-4
(TCIM-4P) |
2KIPM-4K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 1.00“ – 25.4mm | |
| M5 | 2KPHM-5
(TCIM-5) |
2KIPM-5
(TCIM-5P) |
2KIPM-5K | 7.47” – 190mm | 0.44” – 11.2mm | 2.28“ – 58mm | 1.00“ – 25.4mm | |
| M6 | 2KPHM-6
(TCIM-6) |
2KIPM-6
(TCIM-6P) |
2KIPM-6K | 7.97” – 202mm | 0.44” – 11.2mm | 2.28“ – 58mm | 1.25“ – 32mm | |
| M8 | 2KPHM-8
(TCIM-8) |
2KIPM-8
(TCIM-8P) |
2KIPM-8K | 7.97” – 202mm | 0.50” – 12.7mm | 2.53“ – 64mm | – | |
| M10 | 2KPHM-10
(TCIM-10) |
2KIPM-10
(TCIM-10P) |
2KIPM-10K | 7.97” – 202mm | 0.69” – 17.5mm | 2.94“ – 75mm | – | |
| M12 | 2KPHM-12
(TCIM-12) |
2KIPM-12
(TCIM-12P) |
2KIPM-12K | 7.97” – 202mm | 0.83 – 21mm | 2.94“ – 75mm | – | |
| UNC | ||||||||
| 2-56 | 2KPHC-02
(TCIC-02) |
2KIPC-02
(TCIC-02P) |
2KIPC-02K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 0.98” – 25mm | |
| 4-40 | 2KPHC-04
(TCIC-04) |
2KIPC-04
(TCIC-04P) |
2KIPC-04K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 0.99“ – 25mm | |
| 6-32 | 2KPHC-06
(TCIC-06) |
2KIPC-06
(TCIC-06P) |
2KIPC-06K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 1.00“ – 25.4mm | |
| 8-32 | 2KPHC-2
(TCIC-2) |
2KIPC-2
(TCIC-2P) |
2KIPC-2K | 7.47” – 190mm | 0.38” – 9.65mm | 2.28“ – 58mm | 1.00“ – 25.4mm | |
| 10-24 | 2KPHC-3
(TCIC-3) |
2KIPC-3
(TCIC-3P) |
2KIPC-3K | 7.47” – 190mm | 0.44” – 11.2mm | 2.28“ – 58mm | 1.00“ – 25.4mm | |
| 1/4-20 | 2KPHC-4
(TCIC-4) |
2KIPC-4
(TCIC-4P) |
2KIPC-4K | 7.97” – 202mm | 0.50” – 12.7mm | 2.53“ – 64mm | 1.25“ – 32mm | |
| 5/16-18 | 2KPHC-5
(TCIC-5) |
2KIPC-5
(TCIC-5P) |
2KIPC-5K | 7.97” – 202mm | 0.63” – 16mm | 2.94“ – 75mm | – | |
| 3/8-16 | 2KPHC-6
(TCIC-6) |
2KIPC-6
(TCIC-6P) |
2KIPC-6K | 7.97” – 202mm | 0.69” – 17.5mm | 2.94“ – 75mm | – | |
| UNF | ||||||||
| 10-32 | 2KPHF-3
(TCIF-3) |
2KIPF-3
(TCIF-3P) |
2KIPF-3K | 7.47” – 190mm | 0.50” – 12.7mm | 2.28“ – 58mm | 0.99“ – 25mm | |
| 1/4-28 | 2KPHF-4
(TCIF-4) |
2KIPF-4
(TCIF-4P) |
2KIPF-4K | 7.47” – 190mm | 0.50” – 12.7mm | 2.53“ – 64mm | 1.24“ – 32mm | |
| 5/16-24 | 2KPHF-5
(TCIF-5) |
2KIPF-5
(TCIF-5P) |
2KIPF-5K | 7.47” – 190mm | 0.63” – 16mm | 2.94“ – 75mm | – | |
| 3/8-24 | 2KPHF-6
(TCIF-6) |
2KIPF-6
(TCIF-6P) |
2KIPF-6K | 7.47” – 190mm | 0.69” – 17.5mm | 2.94“ – 75mm | – | |
| 7/16-20 | 2KPHF-7
(Free Running) |
2KPHL-7
(Locking) |
2KIPF-7 | 2KIPF-7K | 7.47” – 190mm | 0.69” – 17.5mm | 2.94“ – 75mm | – |
| 1/2-20 | 2KPHF-8
(Free Running) |
2KPHL-8
(Locking) |
2KIPF-8 | 2KIPF-8K | 7.47” – 190mm | 0.69” – 17.5mm | 2.94“ – 75mm | – |
